3 1/4 Awning
Our vinyl awning windows provide elegant style while improving air-flow in bathrooms, kitchens, and other areas that are prone to high humidity levels.

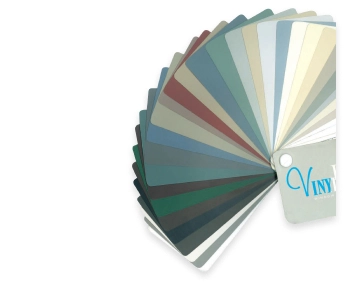

Over 100 custom colours available
We build our vinyl windows with a high number of internal air chambers for superior
insulation, thermal efficiency, sturdiness and sound abatement.
Installation options
we’ve partnered with reliable contractors with a proven track record of successful
installations. In addition to full window replacements, our trusted partners can perform three
types of installation.
Vinyl construction
unique compound gives our windows a better resistance to impact and
discoloration. It ensures they will not crack, blister or warp while remaining
maintenance-free.

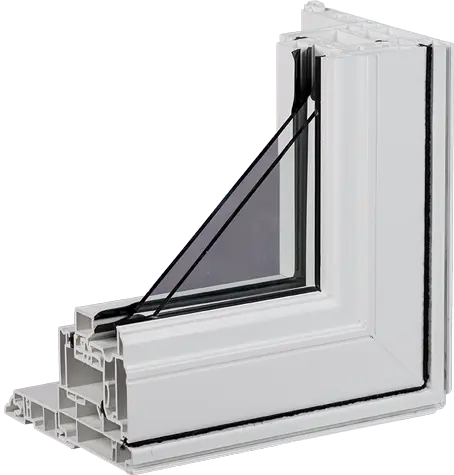

Double glazing
need for adhesive and sealants. There are no imperfections on the
completely waterlight and airtight surface. Internal walls are also
welded for increased overall structural strength.

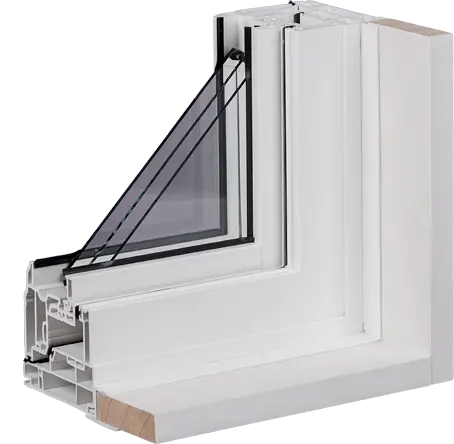

Triple glazing
need for adhesive and sealants. There are no imperfections on the
completely waterlight and airtight surface. Internal walls are also
welded for increased overall structural strength.
Glass options
Low E-glass
heat transfer and reflecting interior heat back into the room. It allows more of the
sun’s rays to enter a home as solar energy to be converted into usable heat. In winter, the
same effect of keeping interior heat inside, and in summer, it helps to reduce the flow of hot
outside air into the cooler interior. Therefore, it helps to lower your energy costs all year
long. Low-E Glass also reduces transmission of the sun’s UV rays which is the leading cause
of premature fading and degradation of fabrics & carpeting.
Clear glass
glass unit
allows heat and cold air from inside and outside to pass through without resistance.
Triple glass
pane of glass. Insulating glasses help keep cold and warm air outside, or vice versa.
Special coatings are often applied to the glass windows to enhance their energy efficiency
by eliminating solar gain.
Cardinal architectural glass
glass products. From the melting of sand to produce clear float glass to the vacuum sputtering
of silver to produce low-emissivity coatings, Cardinal manufactures quality components and
finished insulating glass products used in top-of-the-line buildings.
LoE 180 Glass
LoE 180 Glass
Realize All the Benefits of High Solar Gain Glass. LoE-180 is the perfect cold
remedy.
Ideal for passive solar applications, it allows winter sun’s heat to pass into the
building while blocking heat loss to the outside. In a double-pane unit with argon
fill,
Cardinal LoE-180 glass delivers an ER of 45,U-factor of 0.26 and visible light
transmission of 77%.
This means high levels of cold weather comfort for occupants. Moreover, the
warmer
indoor glass surface means relative humidity can be controlled and maintained
properly,
improving occupants’ comfort and surroundings. Building owners and/or managers
benefit
from significant energy savings. mayBecause LoE-180 transmits more natural light, architects may
be able to reduce lighting loads, resulting in even more savings.
Naturally saving energy is also good for the environment.
Cardinal LoE-180 glass can be supplied in stock sheets and can be tempered and
laminated
for stock delivery. Maximum stock sheet size: 96”x144» (2.43 meters x 3.65 meters).
Cardinal LoE Glass Sets the Standard for Energy-Efficient Glass. Our patented,
state-of-the-arts puttered coatings are unmatched by any other glass manufacturer.
These
high-transmission coatings are virtually transparent, blocking the heat and reducing solar
gain, while optimizing light transmission. Infact, our LoE2 and LoE3 coatings
actually
out perform tinted glass, which is often used.
Cardinal produces nearly 700 million square feet of coated glass annually, at seven
coating plants across the U.S. Our Intelligent Quality Assurance Program (1.Q.)
ensures
the quality of every piece of glass. Using our patented inspection systems,
we thoroughly examine the glass for exterior and room side colour, visible
transmission/reflection, IR reflection and edge deletion.
- Locate the long dimension and short dimension on the chart.
- Draw a vertical line from the long dimension and a horizontal line from the
short dimension. - At the point where these lines intersect, interpolate between the wind load
(kPa) contours to determine the allowable wind load. For windload in PDF,
use
the conversion factor in the chart. - If the glass construction other than annealed-annealed is to be used,
determine
the wind load for the annealed-annealed glass with the appropriate glass
thickness, and multiply this wind load by the appropriate load factor (see
Load
Factors).

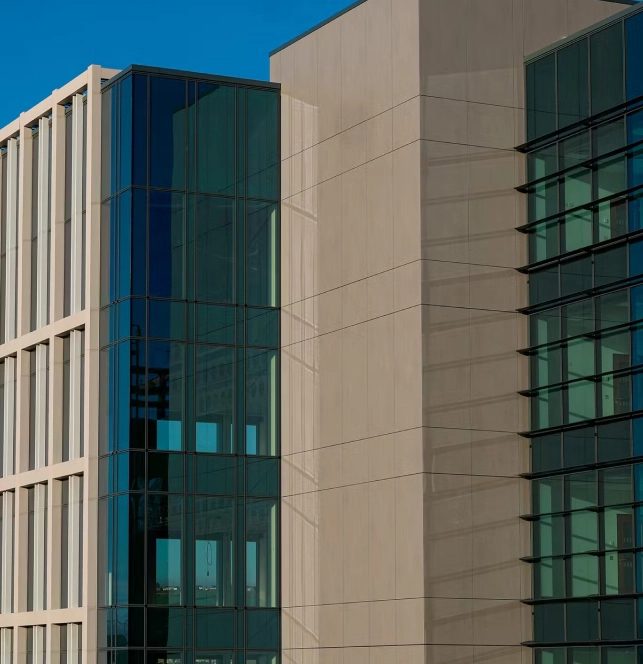

LoE 2 272 Glass
LoE2 272 Glass
Get Superior Thermal Performance Year Around. LoE2-272 is ideal for any climate and
weather. Just look at the numbers. In a double-pane unit with argon fill, Cardinal
LoE2-272 glass delivers an SHGC of 0.40, U-factor of 0.25 and visible light
transmission
of 70%. All with no haze or bluish cast.
This means high levels of year-round comfort for occupants. Moreover, the warmer
indoor glass surface means relative humidity can be controlled and maintained
properly,
improving occupants’ comfort and surroundings. Building owners and/or managers
benefit
from significant energy savings. And because LoE2-272 transmits more natural light
and
reduces solar gain, architects may be able to reduce lighting and air conditioning
loads, resulting in even more savings. Naturally saving energy is also good for the
environment.
Cardinal LoE2-272 glass can be supplied in stock sheets and can be tempered and
laminated for stock delivery. Maximum stock sheet size: 96” x 144” (2.43 meters x
3.65
meters).
Cardinal LoE Glass Sets the Standard for Energy-Efficient Glass. Our patented,
state-of-the-art sputtered coatings are unmatched by any other glass manufacturer.
These
high-transmission coatings are virtually transparent, blocking the heat and reducing solar
gain, while optimizing light transmission. In fact, our LoE and LoE2 coatings
outperform
tinted glass often used.
Cardinal produces nearly 700 million square feet of coated glass annually, at seven
coating plants across the U.S. Our Intelligent Quality Assurance Program (I.Q.)
ensures
the quality of every piece of glass. Using our patented inspection systems, we
thoroughly examine the glass for exterior and room side colour, visible
transmission/reflection, IR reflection and edge deletion.
- Locate the long dimension and short dimension on the chart.
- Draw a vertical line from the long dimension and a horizontal line from the
short dimension. - At the point where these lines intersect, interpolate between the wind load
(kPa) contours to determine the allowable wind load. For windload in PDF,
use
the conversion factor in the chart. - If the glass construction other than annealed-annealed is to be used,
determine
the wind load for the annealed-annealed glass with the appropriate glass
thickness, and multiply this wind load by the appropriate load factor (see
Load
Factors).
LoE 3 366 Glass
LoE3 366 Glass
Get the Perfect Balance of Solar Control and High Visibility. Just look at the
numbers.
In a double-pane unit with argonfill, Cardinal LoE3 -366 glass delivers an
SHGC of 0.27,
U-factor of 0.24 and visible light transmission of 63%. All with no interior-darkening
tints and virtually no exterior reflectance.
This means a high levels of year-round comfort for occupants. Moreover, the warmer
indoor glass surface means relative humidity can be controlled and maintained
properly,
improving occupants’ comfort and surroundings.
Building owners and/or managers benefit from significant energy savings.And because
LoE3 -366 transmits more natural light and reduces solar gain, architects may be able
to reduce lighting and air conditioning loads, resulting in even more savings.
Naturally,
saving energy is also good for the environment.
Cardinal LoE3 -366 glass can be supplied in stock sheets and can be tempered and
laminated for stock delivery. Maximum stock sheet size: 96” x 144” (2.43 meters
x 3.65
meters).
Cardinal LoE Glass Sets the Standard for Energy-Efficient Glass. Our patented,
state-of-the-arts puttered coatings are unmatched by any other glass manufacturer.
These
high-transmission coatings are virtually transparent, blocking the heat and reducing solar
gain, while optimizing light transmission. In fact, our LoE and LoE coatings
outperform the tinted glass of ten used.
Cardinal produces nearly 700 million square feet of coated glass annually, at seven
coating plants across the U.S. Our Intelligent Quality Assurance Program (I.Q.)
ensures
the quality of every piece of glass. Using our patented inspection systems,
we thoroughly examine the glass for exterior and room side colour, visible
transmission/reflection, IRreflection
and edge deletion.
- Locate the long dimension and short dimension on the chart.
- Draw a vertical line from the long dimension and a horizontal line from the
short dimension. - At the point where these lines intersect, interpolate between the wind load
(kPa) contours to determine the allowable wind load. For windload in PDF,
use
the conversion factor in the chart. - If the glass construction other than annealed-annealed is to be used,
determine
the wind load for the annealed-annealed glass with the appropriate glass
thickness, and multiply this wind load by the appropriate load factor (see
Load
Factors).
LoE i89 Glass
LoE i89 Glass
Double-pane windows become triple-pane performers
There i’s no need to go to triple-pane windows to meet the various energy-saving
guidelines. No need to invest in redesigning your windows and altering your
manufacturing processes either. A double-pane IG unit with LoE-i89 can meet the
guidelines.
LoE-i89 is sputtered onto the indoor lite, the #4 surface, thus reflecting escaping
heat
back into the room and lowering U-Factors. Coupled with our LoE2 or LoE3 glass and
argon
fill, this double-pane unit delivers performance much better than clear
triple-pane —
a centre of glass U-Factor of just 0.20 compared to 0.37 with clear triple-pane.
To surpass the U-Factor performance of our LoE-i89 double-pane unit, you would need
to go to a triple-pane unit with a low-E coating in each gap.
Super spacer
Super spacer. is the winning choice for the industry’s most durable
insulating glass units
Warm edge technology is more than a low-conductive product that helps make
windows more thermally efficient. The warm edge spacer is the seal that
keeps the glass package in windows from falling.
Two types of insulating glass systems are on the market today: Single-seal
and dual-seal systems. Single seal units are constructed of only one type
of sealant, which is called upon to perform double-duty. Not only must the
sealant retard the infiltration of moisture vapour, but it must also hold the
unit together under a wide variety of both high and low temperatures while
withstanding the effects of high humidity and ultraviolet exposure.
A dual-seal unit is constructed using a combination of a sealant that functions
mainly as a high-strength adhesive and a second sealant, primarily used
as a moisture vapour seal.
Super spacer® is a dual-seal insulating glass system. This NO-Metal, structural
foam spacer resists condensation, reduces energy costs, provides
long-life durability, and adds comfort and value to your windows.
Protect your most precious possessions – choose Health Smart Windows for your
home and family.
block heat from escaping or entering through the glass edge. It provides optimal
thermal performance and is the lowest U Value in the industry.
- Optimized energy savings
- Enhanced environmental comfort and health near windows
- Condensation and mold resistance like no other spacer
- Extreme durability for sustainable performance
The problem — poorly insulated or installed windows
of Edgetech
IG Inc. Swiggle® is a registered trademark of TruSeal. Intercept®
is a registered
trademark of PPG Industries, Inc.
Vinyl Pro is one of a few manufacturers carrying this product.
Many of today’s energy-efficient windows offer glass packages with «Warm Edge
Technology». The problem is that highly conductive metal-based insulating glass
spacers are often used in these new windows.
A new window can lose up to 50% of its overall stated R-value with a metal-based
spacer at the edge of the glass. R stands for the «resistance» of transferring
heat or cold through a solid object. So, a higher R-value means better
insulation against heating and cooling loss.
The edge of the insulating glass is the most vulnerable to heating and cooling
loss. This usually leads to condensation. It’s a problem that looks unsightly
over time, it will stain wood, peel paint and rot frames.
Not only that, but window condensation can contribute to mold growth, a sinister
presence hidden from sight deeply inside window and wall openings.
Visible mold can often be found in poorly insulated or installed
windows. Mold is being linked to child asthma, plus increases
in general respiratory illness, allergies and outbreaks of fungal diseases.
Designs grid
Grid types
Interior finishes

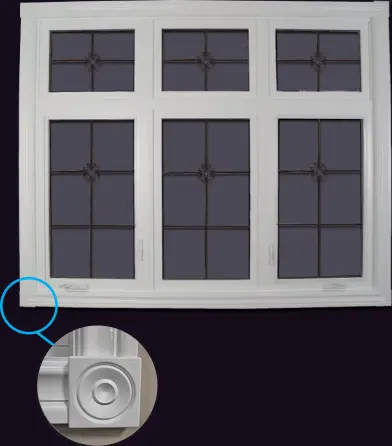

Vinyl package with contemporary rosettes

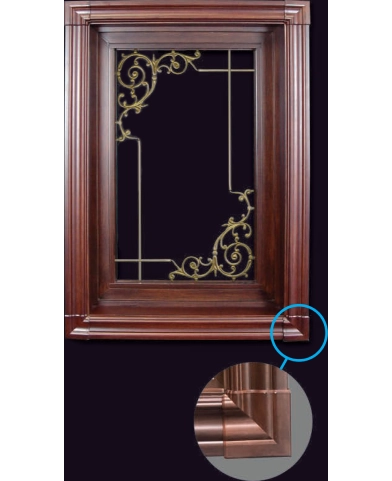

Vinyl package with wood stain option

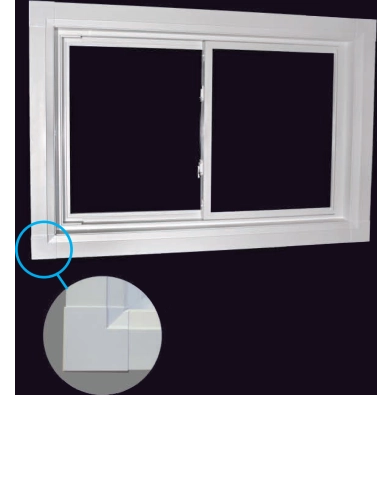

Vinyl package with step casing
Vinyl package with classic rosettes
Trim options
versatile styling. We combine advanced technology with the finest materials for
durable, flawless finishes that will retain their colour year after year. Standard
finishing options include wood stain and contemporary and classic rosettes, but
we can also accommodate custom colours.

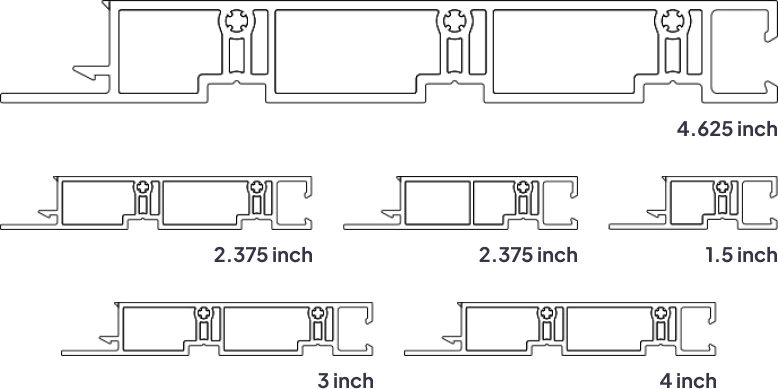

Jamb sizes
We can also provide wood jamb extensions, frame moldings and corner blocks for added flexibility.
These interior finishing options are made from a durable
lead-free PVC powder compound that requires no maintenance.
Exterior finishes

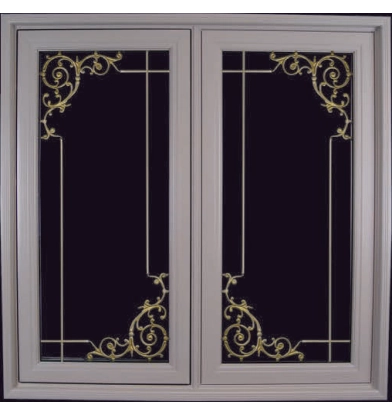

Combination of fixed and casement windows with 1-1/4” brickmould

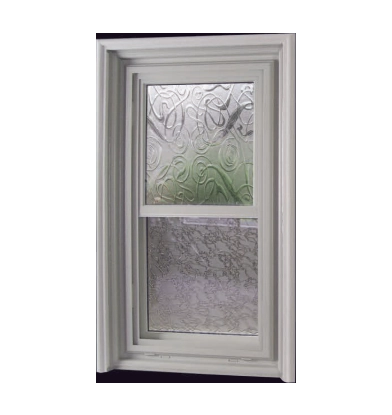

Double hung window with 5/8” brickmould

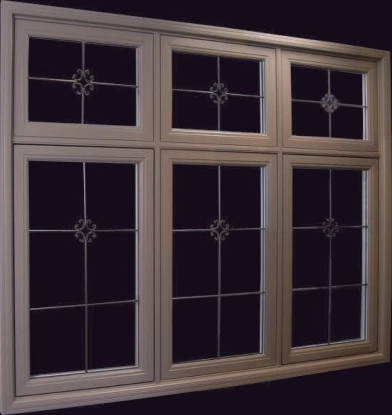

Combination of windows with 2” brickmould

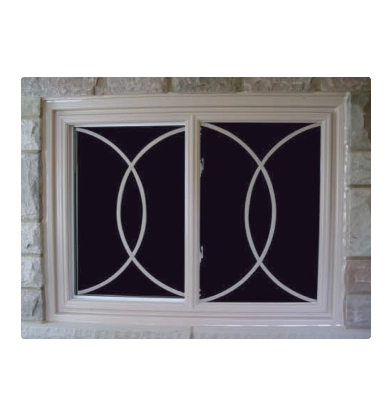

Single slider window with 1-1/4” brickmould

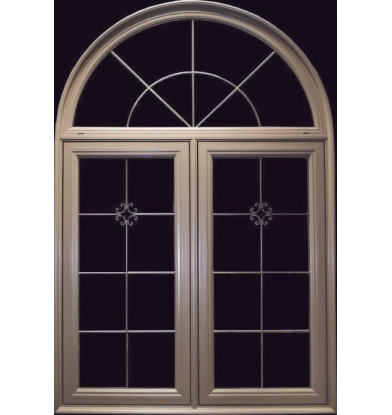

Shape Transom on top of Casement & Fixed Casement combination with 5/8” brickmould

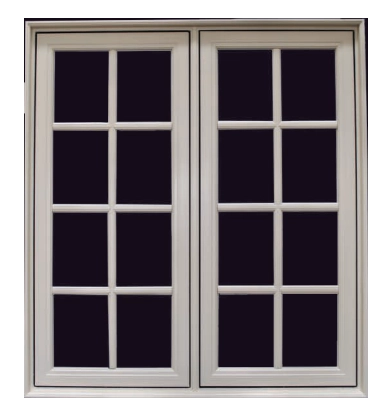

Combination of Casement & Awning with 5/8” brickmould & simulated divided light
(SDL) grills

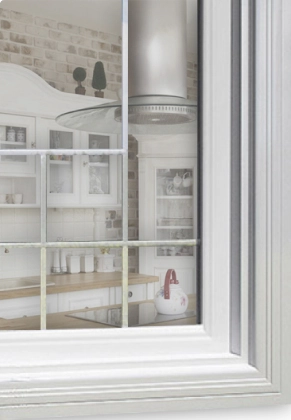

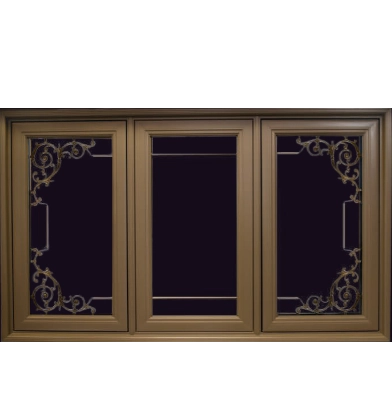

Combination of Casement & Fixed Casement with 1-1/4” brickmould

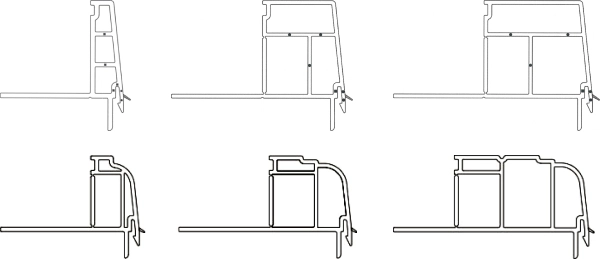

Brickmoulds
to stand up to the harshest elements. This maintenance-free material is
available
in various sizes and colours for long-lasting curb appeal.
Available colours
improvement
project.

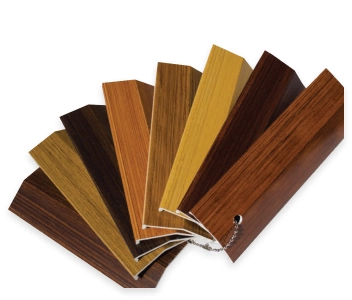

Stain options
windows
to achieve the look of natural wood finishing.

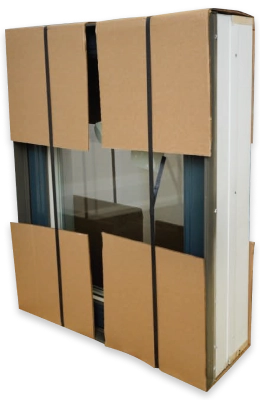

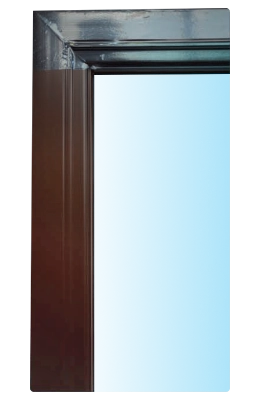

Paint and packaging
Vinyl Pro uses Prolux paint, a leader in technology and innovative products for the liquid paint market.
Prolux produces coatings for many substrates,
including a superb line of paints formulated exclusively for PVC.
All our colour window frames are coated with four layers of paint for lighter
colour, and six layers for darker colour. In comparison, industry standards with two coats
for a lighter colour and three coates for a darker colour are applied.
- All of our products are painted in boxes instead of in liners.
- All painted frames come with a 10 year warranty.
- All painted frames are protected by protective film from being scratched during
installation. - All painted windows are securely packaged to avoid packages from being damaged
during transportation. - Vinyl Pro is one of a few manufacturers offering on-site painting service for
minor paint damages during installation.
Understanding condensation on a window
is a collection of questions and answers designed to provide you with a better understanding
of condensation and how you can minimize it.
Exterior condensation questions
Interior condensation questions
Authentication mark
seeing this mark you can be sure that the windows are original and comply with all regulations and
requirements.
Warranty
Care and maintenance overview
not warp, crack or blister. They require only occasional cleaning with water and a mild
detergent to keep them looking new. For advice on cleaning the different components of your
windows, visit our care and maintenance overview.
